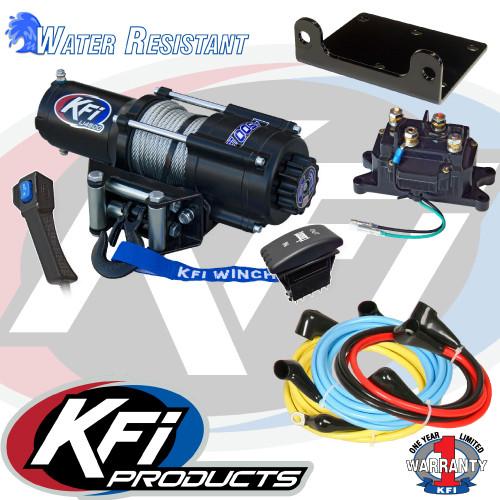

4500lbs KFI UTV Winch (Standard Width) KFI U45-R2


Winch Details:



Whether it’s on a winding trail, plowing snow or deep in the mud, a reliable winch is the most important accessory a rider can have. Equip your ATV, UTV, or SxS with a KFI WINCH and feel confident you can pull yourself out of any situation. The compact 4500lb ATV/UTV Series winches feature quality cast aluminum and durable steel components, new Dash Rocker Switch water resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy duty, all metal turn clutch. All of the KFI winches are backed by a 1-year Limited Warranty and come with everything you need other than an ATV/UTV model specific winch mount. Everything is included along with detailed installation instructions and hardware to mount your winch to a model specific ATV/UTV winch mount.

Specifications:

Model: U4500 UTV Series
Rated Line Pull: 4500 lbs.
Motor: 12V DC, 1.7 hp Permanent Magnet
Gear Ratio: 166:1
Gear/Transmission: All-metal Planetary Gear Drive
Brake: Dynamic and Mechanical
Clutch (free spooling): All Metal Cam Activated Freespool
Drum Size: 2" (D) x 3.19" (L)
Cable: 15/64" (D) x 38' (L)
Fairlead: Multi-directional Roller

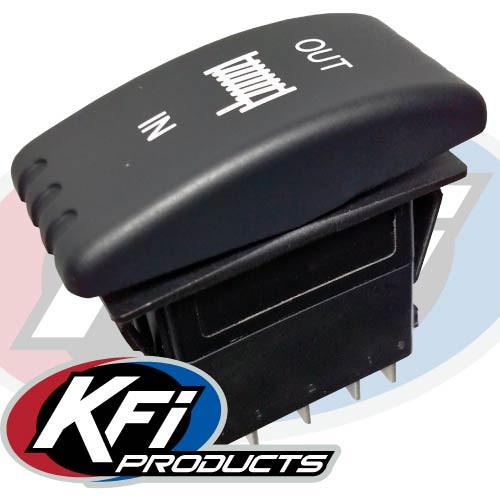

Control: Deluxe Handlebar-Mounted Mini-Rocker Control Switch with

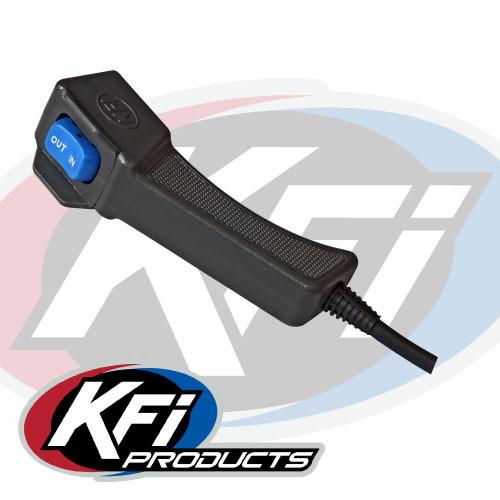

               optional dash mount bracket and a Heavy Duty Corded Remote Switch
Winch Dimensions: 14.6" L x 4.55" D x 5" H
Mount Plate: Fairlead Mount Only (A Model Specific Mount is necessary for your make and model UTV)
Mounting Bolt Pattern: 3.00" x 4.875" (4-Hole)
Recommended Battery : 12 Amp/hour minimum
Warranty: Limited 1 Year
Winch Weight: 36.6 lbs. (complete kit)

Line speed and Motor Current (First layer)

Line pull Max

lbs

0

1000

2000

3000

4500



kgs

0

454

907

1361

2041



Line speed
(12VDC)

FPM

12.8

9.8

8.5

6.9

4.6



MPM

3.9

3.0

2.6

2.1

1.4



Max Current

amps

28

80

130

180

280



Cooling Time

minutes

5

5

5

5

5
