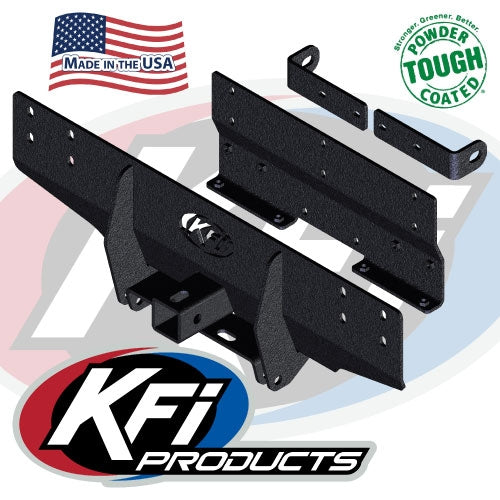

All Years Mahindra ROXOR - Snow Plow Mount 459-6005

!!! CAUTION !!!

The Open Trail plow system, including the blade and push tube, is designed to be used with ATV and UTV applications. Due to the increased size and weight of the ROXOR machine compared to a full size UTV, failing to follow the below safety rules will greatly increase the chances of damaging your plow system, machine and/or winch (if applicable). Open Trial will not be liable for any bending of materials as it is not caused by imperfections or defects in the material but by failing to follow these safety rules:

• Do not exceed 5 MPH, even with the blade raised.
• Make sure that all nuts and bolts are tightened per installation instructions.
• Never operate this Open Trail product with missing or damaged parts.
• Drive slowly over bumpy and rough terrain, driving fast could cause damage to winch (if applicable) or plow.
• Never raise the plow above point of contact as it could cause damage to machine or winch (if applicable).
• Always perform regular inspections and maintenance on plow system and hardware before use.
• Operate with extreme caution on slopes, steep grades, and rough terrain.
• Be aware of any possible hidden objects under the snow.
• Do not ram the blade into the snow pile.

 Building your Plow System is a simple 3-step process:

Step 1. Choose your UTV from the above list to find the Quick Mount Bracket required. The Bracket will attach the Push Tube with Swivel Mount to your machine.

Step 2. Choose your Push Tube with Swivel Mount #106300 (UTV)for attaching the Plow Blade to the Quick Mount Bracket.

Step 3. Choose your size blade: UTV Pro-S (Straight).

Each Part is made from high-grade steel for an absolute rock-solid mounting option you can count on no matter how thick and heavy the snow is.

You'll also need your own winch to operate the plow up and down.

We uses only top-grade steel construction and quality-made components, for year after year of reliable plowing.

Our Plow Tubes features rugged built Grade 50 steel construction, shot-blasted and industrial powder coat finished for toughness that's measured in decades, not years.

The UTV Pro-Series Plow Systems are designed to have all of the same great features as our ATV system with more design put into strengthening the UTV system to withstand the forces of larger UTV's.

The UTV plow system is engineered as a Front-Mount System that transfers the forces from plowing to the front lower frame of your UTV.  The System is attached in seconds using two standard 5/8" hitch pins.  With this Front-Mount System you get 30+ inches of lift height.  All of the plow components are shot blasted and powder coated tough for the best finish available.

The Plow Tube System will work with our Pro-Series 48", 54", 60" Straight Blades,  and UTV 66 or 72" Reinforced Straight Blade.  Features of our heavily reinforced tube system include: an easy-pull pin blade angle adjustment, multi-position plow lift bracket, 3 blade angle positions that rotate the blade up to 25 Degrees, and 6 five degree blade pitch adjustments.

 fits:

Mahindra ROXOR - ALL YEARS - Snow Plow Mount 459-6005
