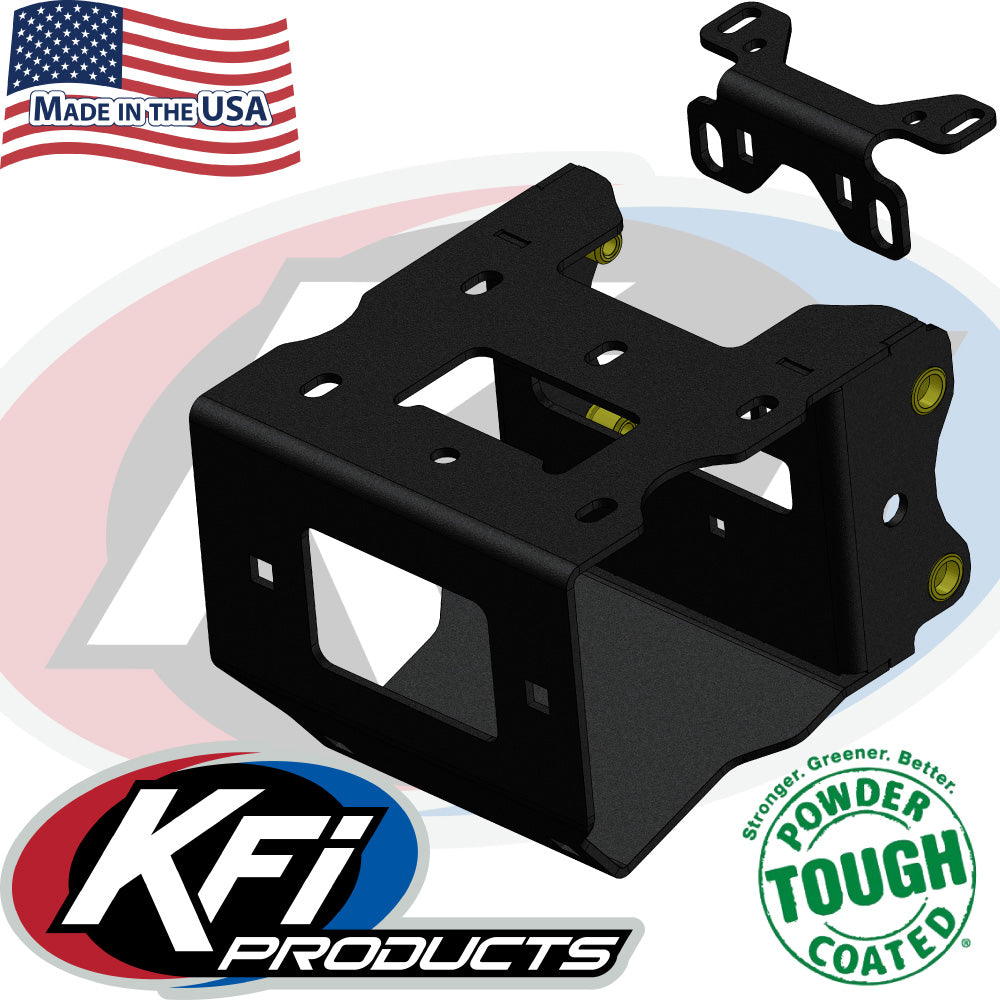

Polaris Sportsman 2021 - 2024 Winch Mount 101840 and Bracket 101895


Fits:

Sportsman 450 Utility HD LE

Sportsman 570 EPS

Sportsman 570 Premium

Sportsman 570 Utility HD LE

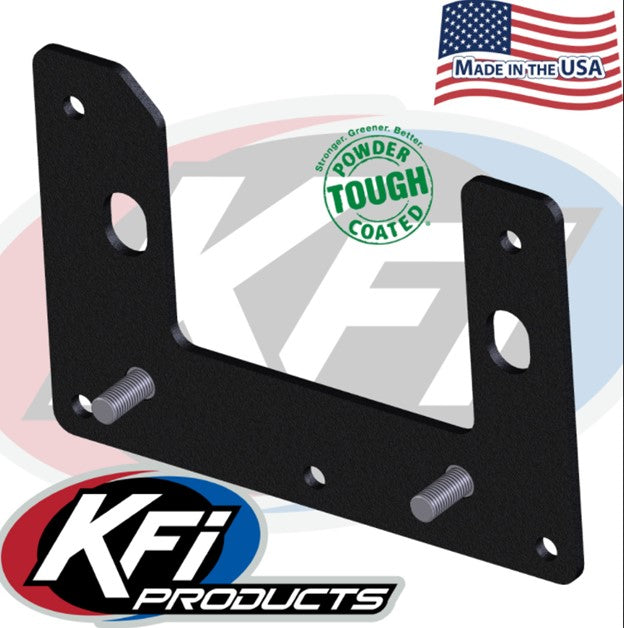

NOTE X: Bumper Conversion Bracket #101895 is needed in order to reinstall OEM Polaris Front Bumper (See Below)

  • Even if the machine does not come factory with the front bumper but you plan on adding the bumper to your current year Polaris Sportsman, the conversion bracket will be required (See Below)

Polaris OEM Bumper Part Numbers
Utility Front Bumper Trail Front Bumper
2638234-458 2638410-458
2639244-458 1026154-458
  1028482-458

Specifications:

  • 100% MADE IN USA.
  • Constructed of 10 GA GR50 steel
  • Designed to fit between in the OEM location below the radiator
  • Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
  • Powder coated black for supreme durability.
  • Mounts the same as OEM intended.
  • Works with all Polaris OEM Brush Guards and Double Tube Bumpers.
  • Very easy to install.
  • Complete installation instructions included.
  • All mounting hardware included.
  • Will work with Polaris Glacier Plow.
  • Roller fairlead and winch not included.


Why buy the OEM Kit when you can  SAVE $100-$150 by getting your winch separate and buying our High Quality 100% American made winch mount.  Your Sportsman is pre-wired with the battery wires pre-ran from your battery to the contactor mount located under your front RH wheel well.  We have everything you need in our kit to mount your winch and fairlead.

Mount designed to work with the following winches:

  • KFI: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35
  • KFI:  AS-50X (requires purchase of ATV-MR )
  • WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
  • WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
  • WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
  • WARN:Vantage 2000-3000lbs / Provantage 2500-482.90lbs
  • RAMSEY : ATV2500 / ATV3000
  • SUPERWINCH : LT2000 / LT2500 / LT3000 / LT4000ATV (Will NOT work with Terra 25/35/45)
  • MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE482.90
  • MASTER LOCK :1500lbs #2955AT
    • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
  • CYCLE COUNTRY :Work Power 1500 and 2500
  • VENOM: 2500 / 3000 / 482.90 / 4000 / 4500 / 5000 (Hardcore Series)
    • All with 3.00" x 4.875" bolt pattern mount-up.
  • KEEPER CORP. TRAKKER :KT2500 / KT3000 / KT2500C / KT3000C
  • KEEPER CORP. TRAKKER :KT2000
    • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
  • SMITTYBILT :XRC 2.0
    • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
    • Listed models come with incorrect ATV roller fairleads.
  • SMITTYBILT :XRC 3.0 / XRC 4.0
  • XGEAR:  X3000 / X4000
    • 4-Hole Standard (3.00" x 4.875" bolt pattern.
  • Traveller:1078088 / 1078302
    • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
  • Possibly many others with the below standard mounting patterns, call to confirm.
    • 4-Hole Standard (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
    • 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
  • QUADBOSS: RP25 / RP35
