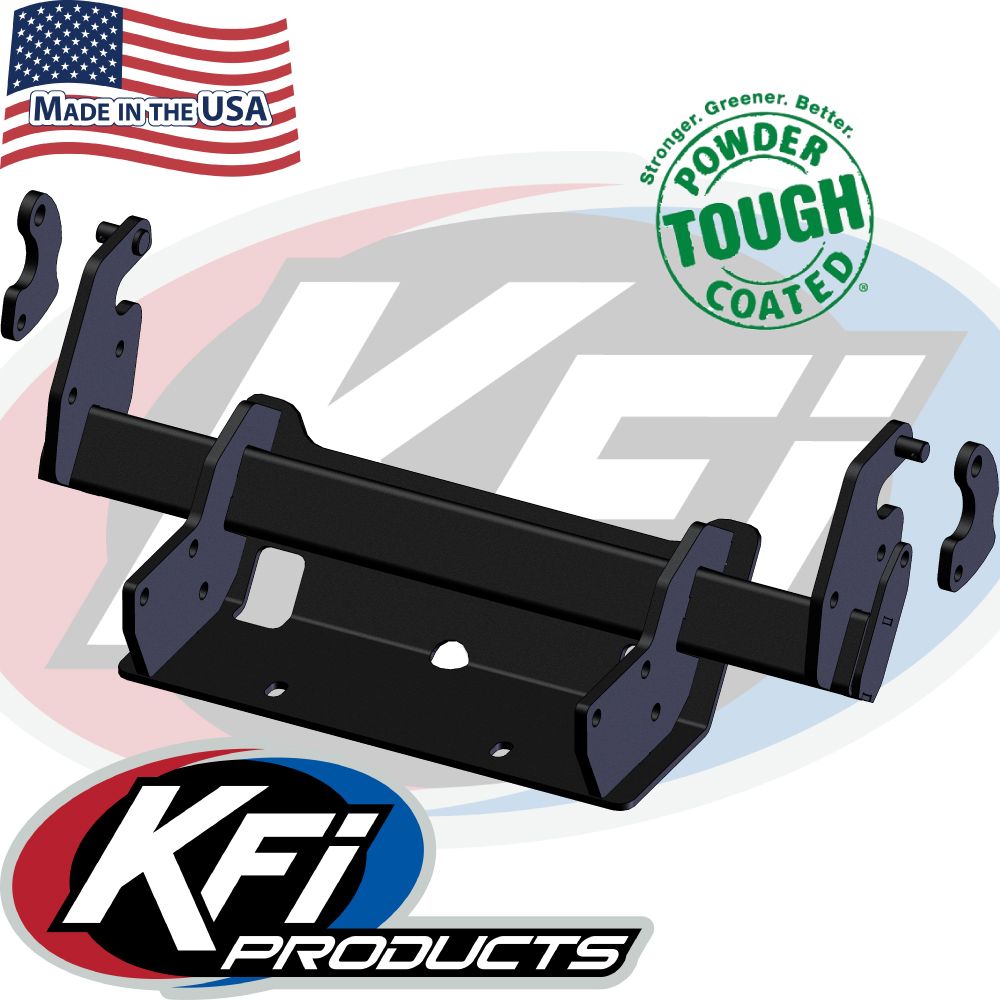

2024 TGB Landmax 1000 - Mount 106345

Plow Notes

O = Will not work with plow leveling kit

Open Trail 2.0 TGB Adapter are designed to be permanently attached to the Pro 2.0 UTV Push Tubes (106300) and keeps the plow mount off of your machine during spring, summer and fall. Designed for the following “stock” Full-Size TGB with the OEM Bumper installed. Ensure the correct TGB Adapter is ordered for your push tubes. The 106345 and 106630 are ONLY compatible with Pro 2.0 Push Tubes (106300).

The TGB bar height is critical. If your machine is listed below, but you have (or are going to install) tracks, larger tires, or a lift kit, we recommend measuring the glacier bar when your machine is set up the way you like, then choose the appropriate height TGB Adapter.

Improper geometry can lead to a bad blade angle and/or force being applied incorrectly. The optimal height of the 106345 Std. TGB Adapter mounting location should be 14” from the ground. The optimal height of the 106630 Tall TGB Adapter mounting location should be 17” from the ground.

 Building your Plow System is a simple 3-step process:

Step 1. Choose your UTV from the above list to find the Quick Mount Bracket required. The Bracket will attach the Push Tube with Swivel Mount to your machine.

Step 2. Choose your Push Tube with Swivel Mount #106300 (UTV)for attaching the Plow Blade to the Quick Mount Bracket.

Step 3. Choose your size blade: UTV Pro-S (Straight).

Each Part is made from high-grade steel for an absolute rock-solid mounting option you can count on no matter how thick and heavy the snow is.

You'll also need your own winch to operate the plow up and down.

We uses only top-grade steel construction and quality-made components, for year after year of reliable plowing.

Our Plow Tubes features rugged built Grade 50 steel construction, shot-blasted and industrial powder coat finished for toughness that's measured in decades, not years.

The UTV Pro-Series Plow Systems are designed to have all of the same great features as our ATV system with more design put into strengthening the UTV system to withstand the forces of larger UTV's.

The UTV plow system is engineered as a Front-Mount System that transfers the forces from plowing to the front lower frame of your UTV.  The System is attached in seconds using two standard 5/8" hitch pins.  With this Front-Mount System you get 30+ inches of lift height.  All of the plow components are shot blasted and powder coated tough for the best finish available.

The Plow Tube System will work with our Pro-Series 48", 54", 60" Straight Blades,  and UTV 66 or 72" Reinforced Straight Blade.  Features of our heavily reinforced tube system include: an easy-pull pin blade angle adjustment, multi-position plow lift bracket, 3 blade angle positions that rotate the blade up to 25 Degrees, and 6 five degree blade pitch adjustments.

 fits:

2024 TGB Landmax 1000- Snow Plow Mount 106345
